Portfolio

A look at the kind of tooling Braven Dynamics builds.

Below are some custom examples of tools I have created to help streamline the manufacturing process, reduce downtime, and increase productivity. Contact Braven Dynamics for any of your custom tooling needs.

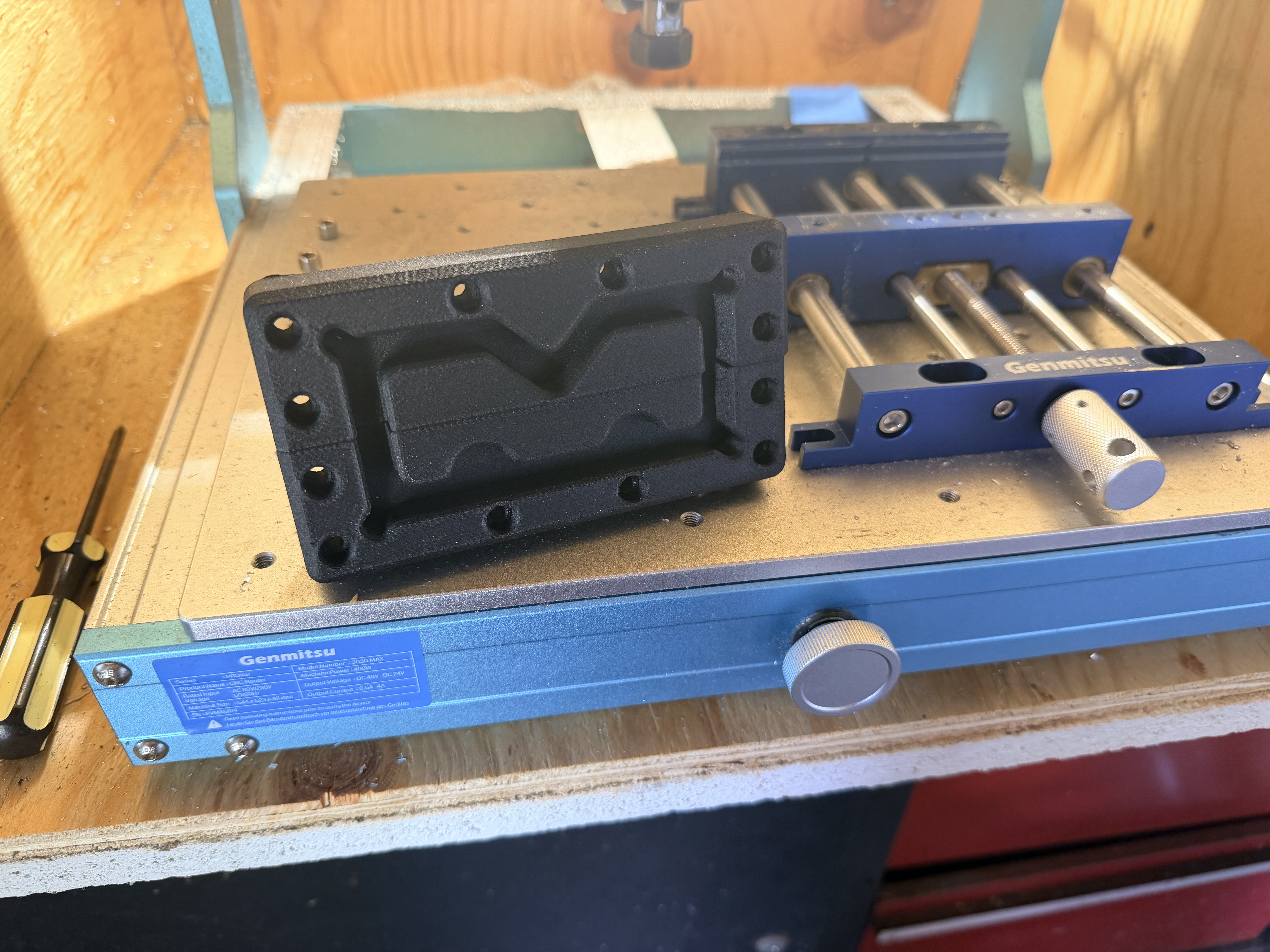

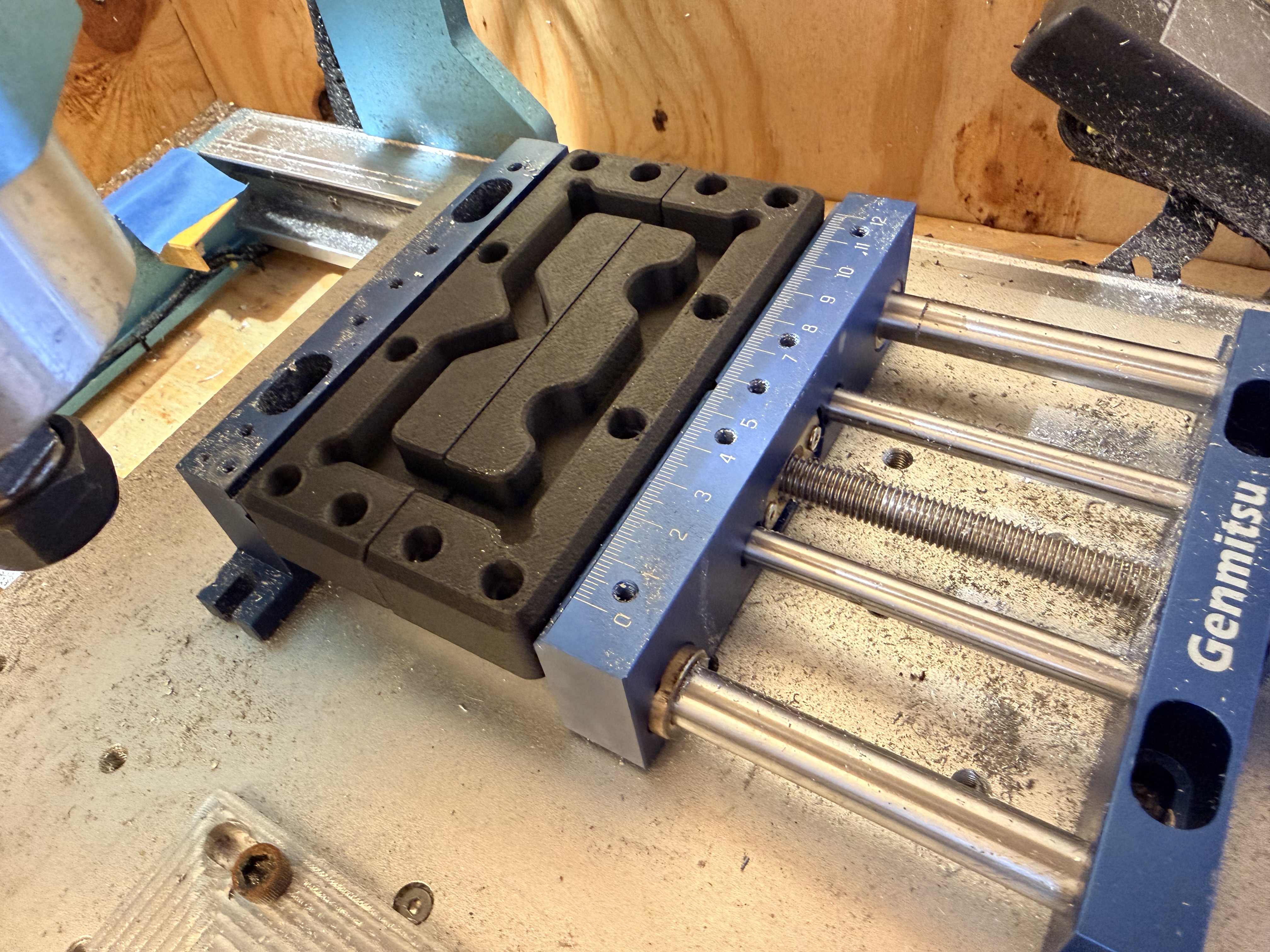

OP2 Side Soft Jaws

OP2 Soft Jaws / Locating Fixture

3D-printed Nylon PA612-CF soft jaws designed to hold an odd-shaped part securely while keeping critical surfaces clear for machining. These can be created as a two-piece jaw or one-piece fixture. Possible hybrid tooling option to incorporate standard hardware.

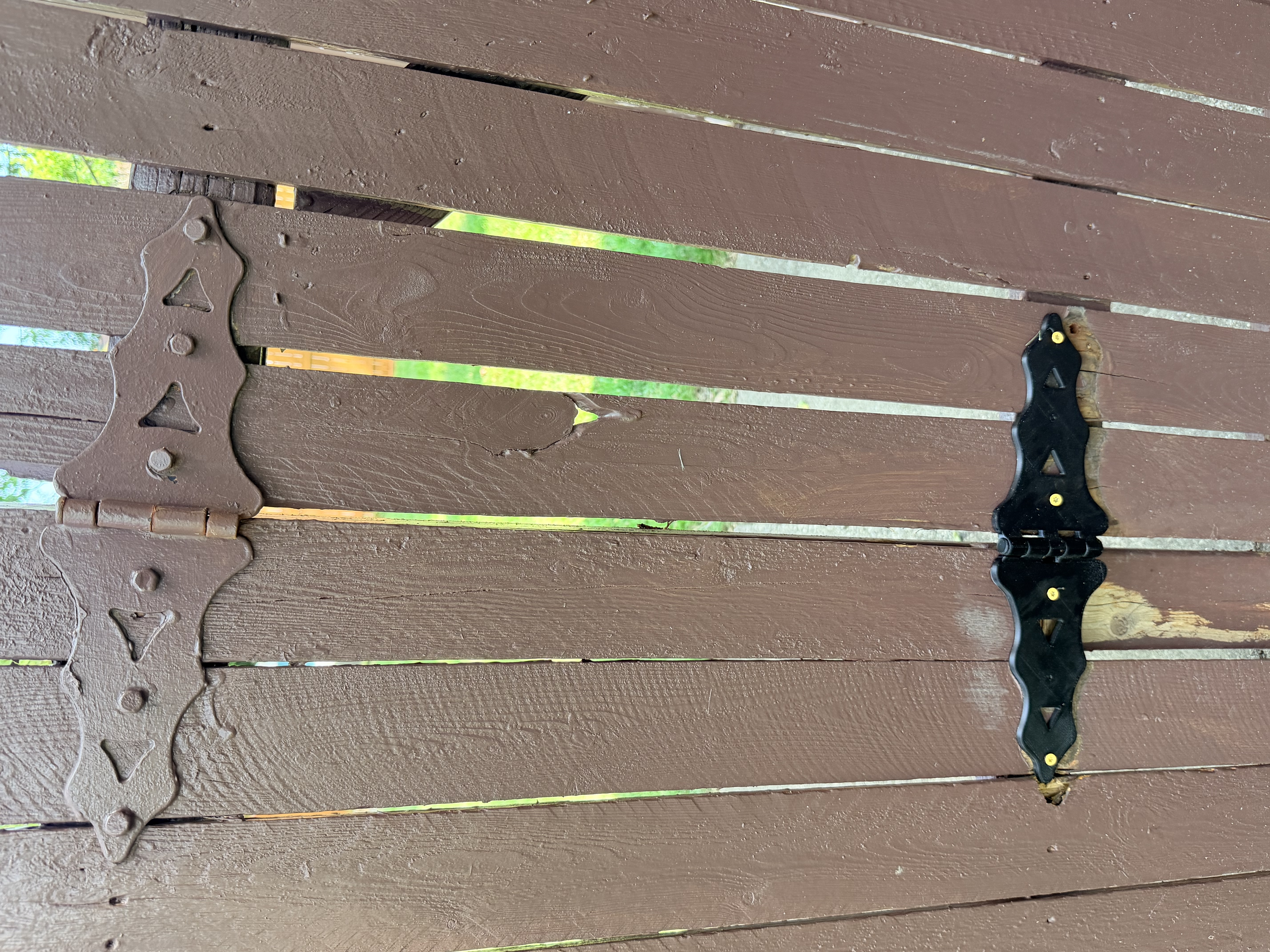

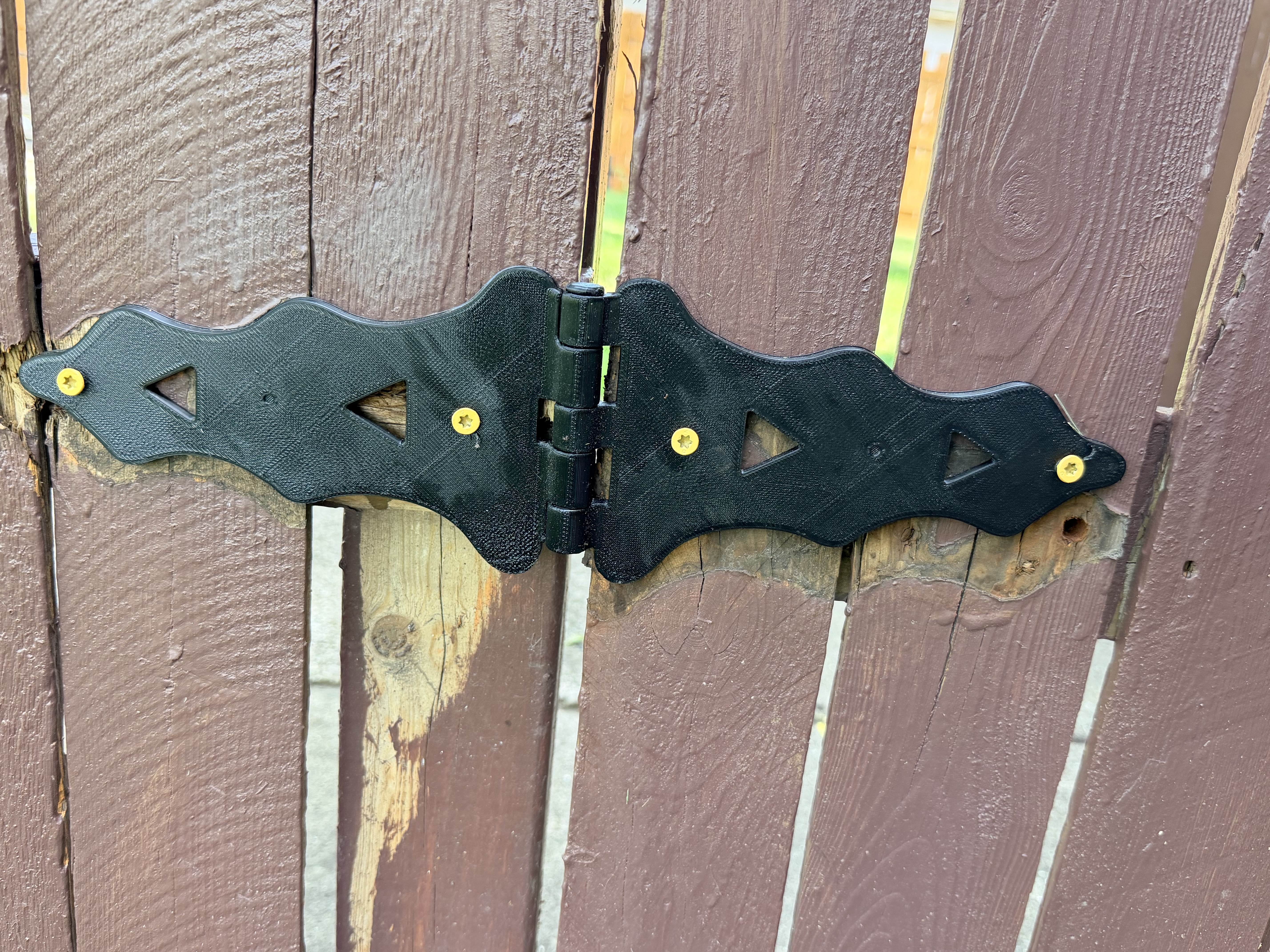

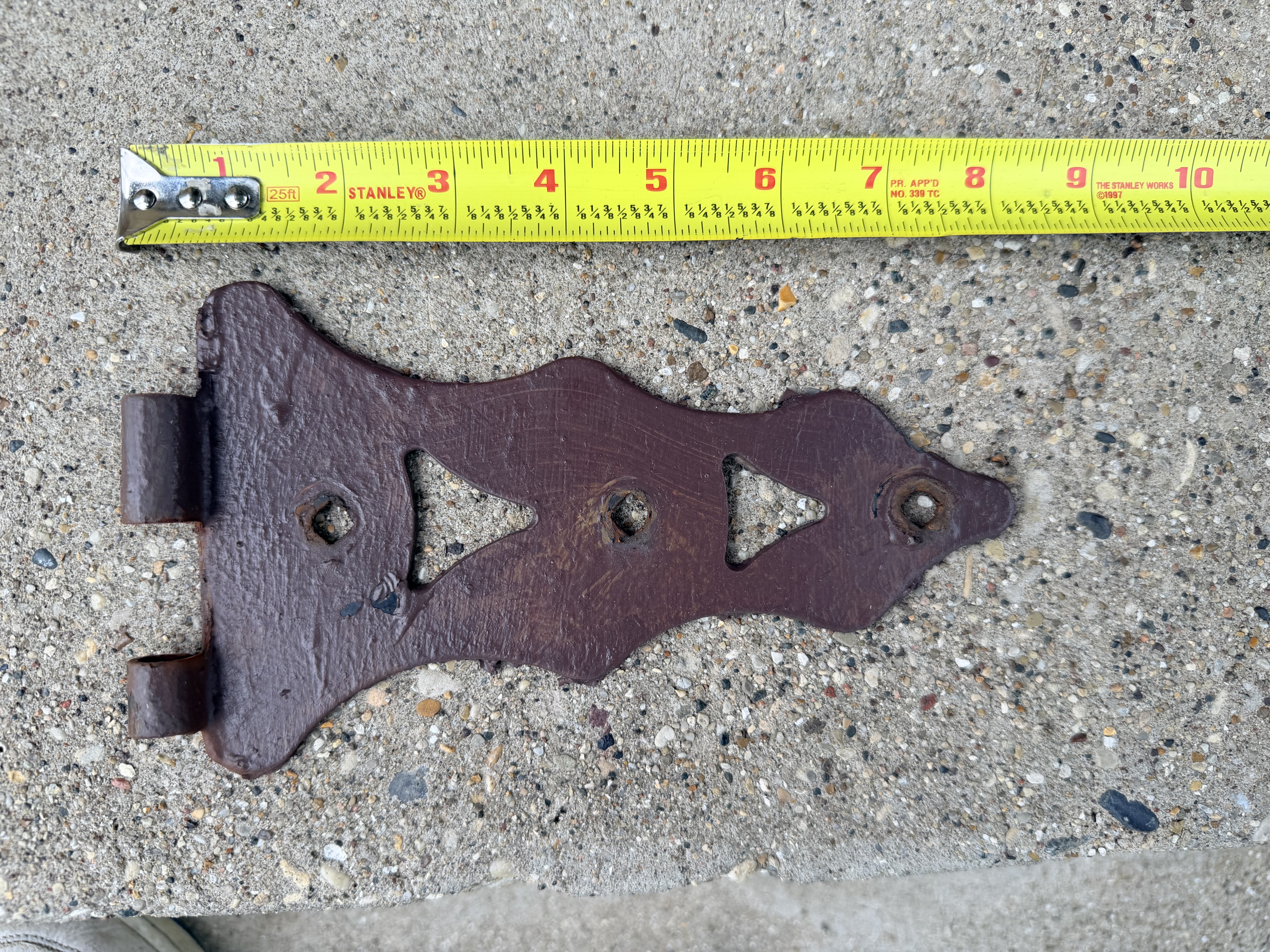

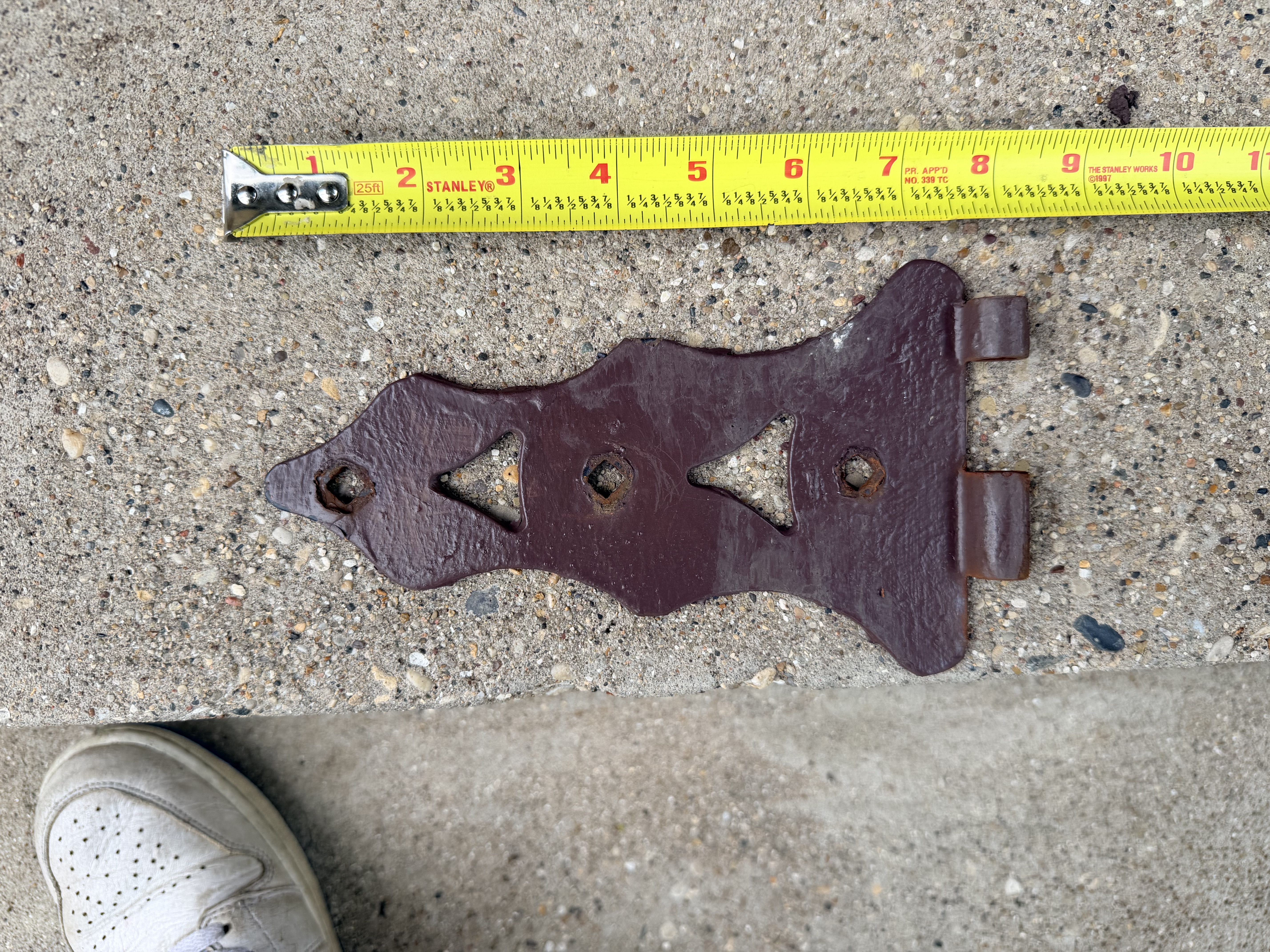

Replacement fence door hinge

Replacement outdated fence hinge

Water, UV, and chemical resistant ASA Hinge made for outdated, overpriced, or parts with long lead times. Also acts as a jig and fixture to temporarily hold fence together until new parts arrive. ASA is also impact resistant, making it tough in any weather.

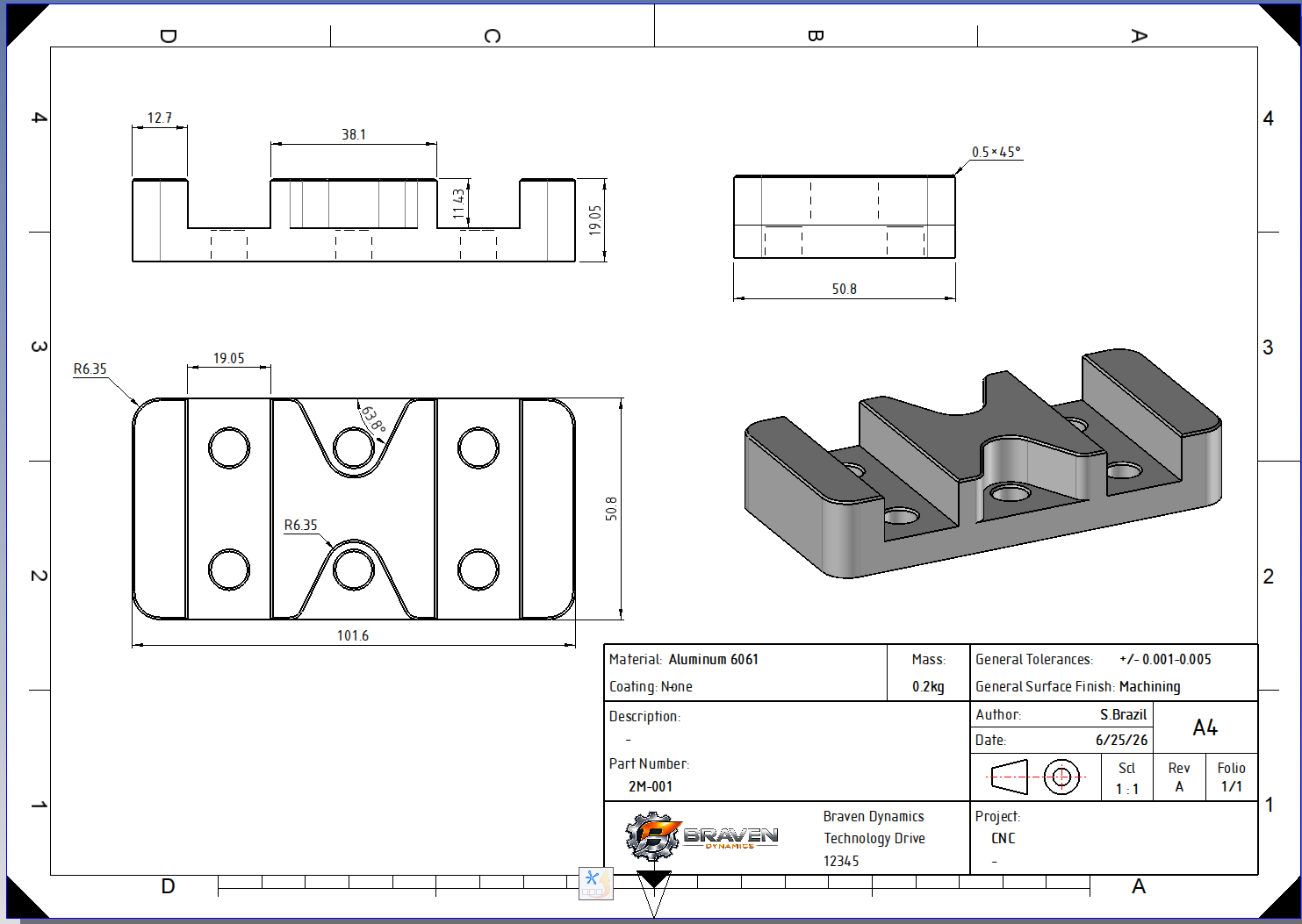

reverse engineered bracket

Reverse Engineering

Getting correct replacements can be a nightmare. Luckily with proper reverse engineering, getting parts made fast and affordable can save a lot of time and trouble.

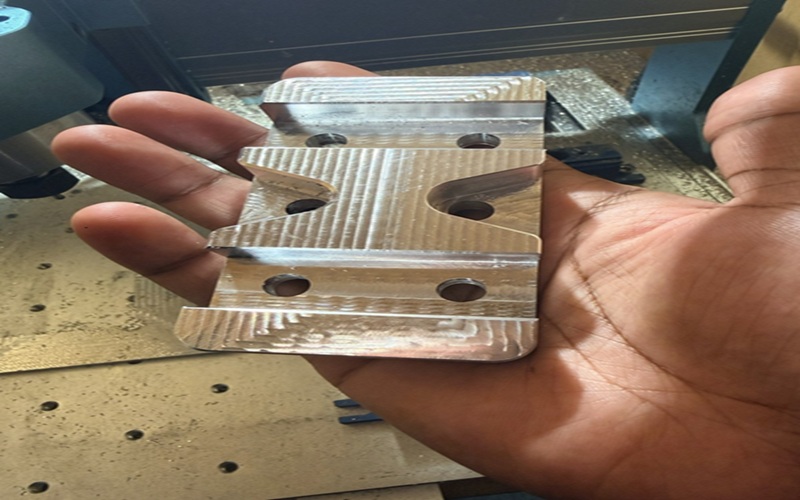

cnc machined aluminum

CNC Machining

CNC machined aluminum part for strength and light weight applications.

Inspection cradle

Inspection cradle

Cradle that positions parts in a repeatable orientation for inspection, making it easier to check key features.

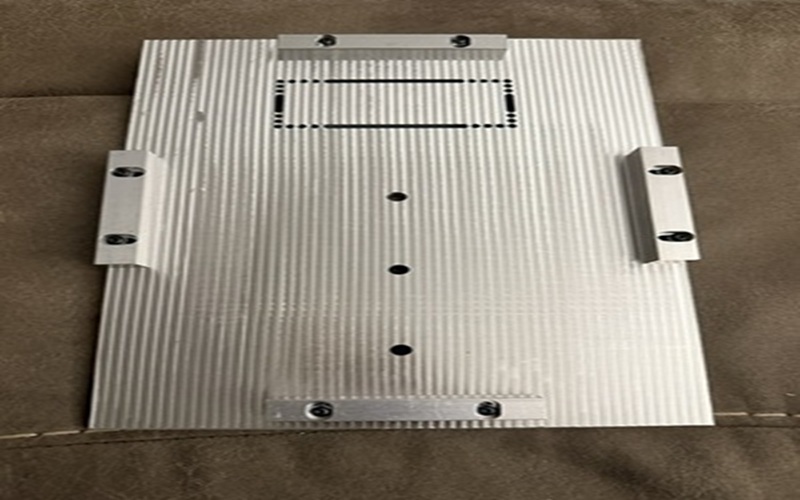

Prototype tooling concept

Prototype tooling concept

Early-stage tooling used to test a new process before committing to more permanent fixtures or automation.

Want something like this for your shop?
Share a part, a photo, or a rough idea, and we can talk through what kind of tooling would help.
Talk about a project →
